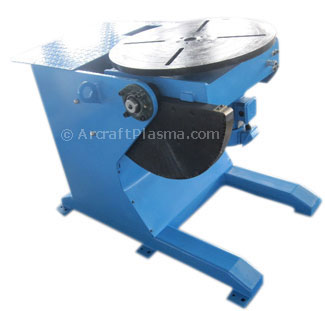

Welding Positioners

Welding Positioners

Choice of Manual / Automatic control
Choice of 3-P AC induction or Servo Motor
Choice of absolute or real time rotation degree measurement
Range available : Face Plate Dia. 300 - 2000 mm
Load capacity : 100 - 3000 Kgs.
Variable speed : as required
Tilting : 0-90^O motorised

Welding Turntable

Choice of Manual / Automatic control
Choice of 3-P AC induction or Servo Motor
Choice of absolute or real time rotation degree measurement
Range available : Face Plate Dia. 300 - 2000 mm
Load capacity : 100 - 3000 Kgs.
Variable speed : as required

Specification

Face Plate (Ø mm)	Weight (kg.)	tilting
300	50	Manual
300	150	Motorized
500	250	Motorized
500	500	Motorized
750	500	Motorized
750	750	Motorized
1000	1000	Motorized
1200	1200	Motorized
1500	1500	Motorized
1500	2000	Motorized
2000	2000	Motorized
