Welding Oscillator

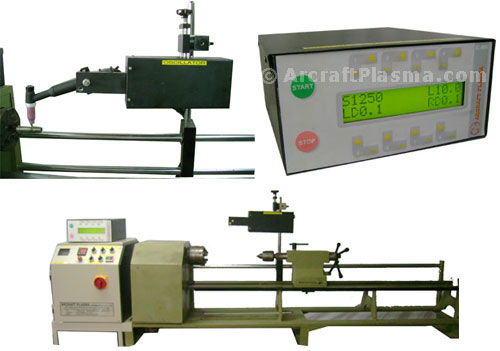

DIGITAL OSCILLATOR
Electronic Prgrammable type linear ball screw mechanism with digital display, display parameter like speed, stroke, Dwell time.

Technical specification of Digital Oscillator

Stroke

0 to 25mm

Speed

0 to 60 per min. stroke @ 25mm stroke width.

Motor

2-Ph / 6V / Stepper

Regulator

Micro controller drive / PLC

Right dwell

0.1 to 9.9 sec.

Left dwell

0.1 to 9.9 sec.

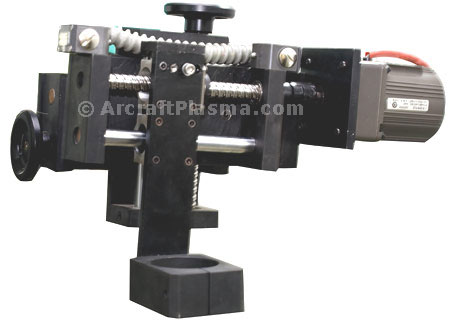

Oscillator

Ball screw linear mechanism
Choice of Analog Control
Choice of Digital Control with Variable Dwell time, stroke leangth programmability.
Range : 0-50 mm (on request)

X-Y Slide

Lead screw linear mechanism
Manual adjustment
Stroke : 0-10 mm
