Hard Banding Machine
Middle Pad HW Drill Pipe
In Operation


as Welded
Finished

Applications in Oil and gas industry

MANUFACTURE OF FULLY AUTOMATED SYSTEM USING MIG/SAW PROCESS For Hardbanding of

  • OD Wear Protection On Drill Collars
  • Drill Pipe
  • Heavy Wall Drill Pipe
  • Hardbanding Of Pin And Box Tools Joints
  • Center Upset Wear Pad
  • Other Tools Used In Drilling Applications.

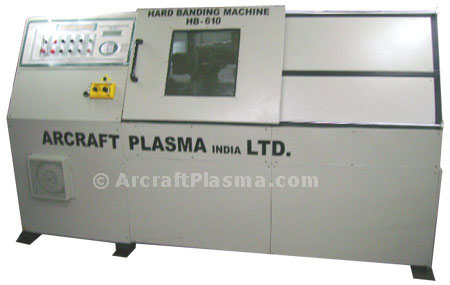

HARD BANDING MACHINE

Model no. HB 610 : Pipe welding/ Hardfacing Lathe assembly for the application of hardfacing on drill pipe tool joint

Lathe : Pipe welding/ Hardfacing Lathe assembly for the Hollow spindle : 300mm

Torch Carraige :

Length : 3000mm

Torch Travel speed : 20 - 1000 mm/min

Auto Stepover : 0 - 99mm adjustable

No. of Bands : 1 - 99 adjustable

Oscillator :

Band width : 1 - 50mm adjustable

Strokes : 1 - 100 per minute @25mm band width

Dwell time : 0.1 to 9.9 seconds

Manual slide :

Z : To adjust torch height on pipe

Y : To adjust torch position on pipe

Welding Source :

Make : ESAB

ModeL : AUTO - K 600

Torch : Gas cooled 500 amps with 3 mtrs. cable
