Product Description











Air / Gas Plasma Machines   [ LIVE VIDEO of Heavy SS Plate Cutting ]

Air Plasma Cutting Machines

Air / Gas Plasma Cutting Machines

Description: Consist of Power source with controls, Water recirculating system if required and a well designed Torch. The basic principle is that the arc formed between the electrode and the work piece is constricted by a fine bore, copper nozzle. This increases the temperature and velocity of the plasma emanating from the nozzle. The temperature of the plasma is in excess of 20 000°C and the velocity can approach the speed of sound. When used for cutting, the plasma gas flow is increased so that the deeply penetrating plasma jet cuts through the material and molten material is removed in the efflux plasma.

Applications: Can cut all electrically conductive metals like S.S, C.S, Copper, Aluminium, Inconel, Titanium etc.

  • Optimised design of fully copper wound air cooled transformer with high quality CRGO laminations to ensure low power consumption at 100% duty cycle.
  • Power factor correction capacitors ensures Power Factor of 0.85 - 0.9% ensuring lowest power consumption.
  • Power controlled in steps in high capacity machines for extended power saving.
  • High open circuit voltage to accommodate easy arc striking. Fully protected power source against voltage fluctuation & overload added with complete safety interlocking for torch protection against air and water failure.
  • Easy to operate and maintain torch head for operator's convenience.
  • Highly improved torch design offers higher cutting capacity at low power output.

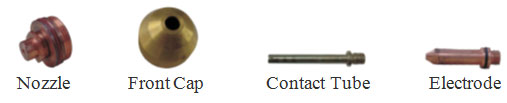

  • Torch design guarantees long life of consumables viz. electrode and nozzle.
  • Almost vertical, dross free cuts with minimum kerf width.
  • Standard Torch cable length of 7 meters with option to extend upto 30 meters.
  • Robust design with powder coated chassis & panels ensures long life in site conditions also.

SINGLE STEP MODELS : ARC CUT 10 TO ARC CUT 50

MODEL : ARC CUT 10 16 25 30 40 50
Technical Data

Cutting Capacity SS/MS
Clean Cut mm
 6 10 16 25 32 40
Parting Cut mm
10 16 25 32 40 50
Torch cooling
Air Air Air Air Air Air /Water
Plasma Gas
Air Air Air Air Air Air/N2
Duty Cycle %
100 100 100 100 100 100
Power

3 Phase 50 Hz With Neutral Volts
380/415 380/415 380/415 380/415 380/415 380/415
Rated Input KVA
6 8 11 15 18 25
Transformer Cooling
Air Air Air Air Air Air
Output current DC AMP
30 40 60 80 100 120
Max O.C.V. Volts
320 320 320 320 320 320
Air/ Gas Flow in LPM
200 200 200 200 200 200/23
Pressure in Bar
5 5 5 5 5 5/2.5
Dimension

Width mm
540 540 540 540 450 450
Height mm
700 700 700 700 770 770
Length mm
860 860 860 860 1100 1100
Weight kgs
70 140 180 210 225 250

THREE STEP MODELS : ARC CUT 40 TO ARC CUT 150
CURRENT SELECTABLE THROUGH PLC IN DIFFERENT STEPS

MODEL : ARC CUT 50-3S 60-3S 80-3S 100-4S 125-4S 150-4S
Technical Data
Cutting Capacity SS/MS
Clean Cut mm
 40 50 60 80 100 120
Parting Cut mm
50 60 70 100 125 150
Torch cooling
Air /Water Water Water Water Water Water
Plasma Gas
Air/N2 Air/N2 Air/N2 N2 N2 N2
Duty Cycle %
100 100 100 100 100 100
Power

3 Phase 50 Hz With Neutral Volts
380/415 380/415 380/415 380/415 380/415 380/415
Rated Input KVA
25 30 36 72 108 144
Transformer Cooling
Air Air Air Air Air Air
Output current DC AMP
120 150 200 400 600 800
Max O.C.V. Volts
320 320 320 400 400 400
Air/ Gas Flow in LPM
23 23 23 23 23 23
Pressure in Bar
2.5 2.5 2.5 2.5 2.5 2.5
Dimension

Width mm
450 450 450 760 760 * 2 760 * 2
Height mm
770 770 770 1200 1200 * 2 1200 * 2
Length mm
1100 1100 1100 1524 1524 * 2 1524 * 2
Weight kgs
280 310 350 900 1000 1100

* To cut 150mm we are using 2 ARC-CUT 100 3S in parallel .
Clean Cut: Absolute dross free and smooth cut with 90o on one cut face max 2o bevel on other.
Parting Cut Max cutting capacity where some dross will be generated and grinding will be required, cut will be tapered on both plates.
